Brand Name : MCR / OEM
Model Number : MC-22400
Certification : CE, ISO, FDA,FSC
Place of Origin : China
MOQ : 1 Pieces
Price : 2.2-4.5usd/pc
Payment Terms : L/C, T/T, D/A, D/P, Western Union, MoneyGram
Supply Ability : 50,000-100,000PCS/Month
Delivery Time : 5-45 days
Packaging Details : 1 Pc/Pouch, 10 Pouches/Box, 10 Boxes/Carton
Name : Closed Suction System
Size : 5 - 16 Fr
Style : Endotracheal or Tracheostomy
Type Of Sterilization : Ethylene Oxide Sterilization
Sterile Closed Suction Catheter With Double Swivel Adapter
Data Sheet
Closed Suction Catheter Y-Piece 24H | ||||
REF(Product ID Number) | Size(product variable) | Color Code | Tube OD (mm) | Length Of Tube(mm) |
MC-22400 | Neonatal/24H/Tracheostomy | Grey | 5FR(1.7mm) | 300mm |
MC-22401 | Neonatal/24H/Tracheostomy | Light Green | 6FR(1.95mm) | 300mm |
MC-22402 | Pediatric/24H/Tracheostomy | Ivory | 7FR(2.3mm) | 300mm |
MC-22403 | Pediatric/24H/Tracheostomy | Light Blue | 8FR(2.7mm) | 300mm |
MC-22404 | Adult/24H/Tracheostomy | Black | 10FR(3.35mm) | 300mm |
MC-22405 | Adult/24H/Tracheostomy | White | 12FR(4.05mm) | 300mm |
MC-22406 | Adult/24H/Tracheostomy | Green | 14FR(4.75mm) | 300mm |
MC-22407 | Adult/24H/Tracheostomy | Orange | 16FR(5.45mm) | 300mm |
MC-22410 | Neonatal/24H/Endotracheal | Grey | 5FR(1.7mm) | 300mm |
MC-22411 | Neonatal/24H/Endotracheal | Light Green | 6FR(1.95mm) | 300mm |
MC-22412 | Pediatric/24H/Endotracheal | Ivory | 7FR(2.3mm) | 300mm |
MC-22413 | Pediatric/24H/Endotracheal | Light Blue | 8FR(2.7mm) | 300mm |
MC-22414 | Adult/24H/Endotracheal | Black | 10FR(3.35mm) | 600mm |
MC-22415 | Adult/24H/Endotracheal | White | 12FR(4.05mm) | 600mm |
MC-22416 | Adult/24H/Endotracheal | Green | 14FR(4.75mm) | 600mm |
MC-22417 | Adult/24H/Endotracheal | Orange | 16FR(5.45mm) | 600mm |
This type of closed suction system mainly for Respiratory diseases /general anaesthesia surgery/emergency rescue require tracheal intubation (or tracheotomy) and artificial respirators to support treatment.
Patients cannot be separated from the ventilator and treated without interrupting mechanical ventilation.
With 360°swivel adapter provides optimal comfort and flexibility for both patient and nursing staff.
Irrigation port equipped with one way valve allows for normal saline to clean catheter efficiently.
MDI port for a more effective, quick and convenient drug delivery.
![]() |

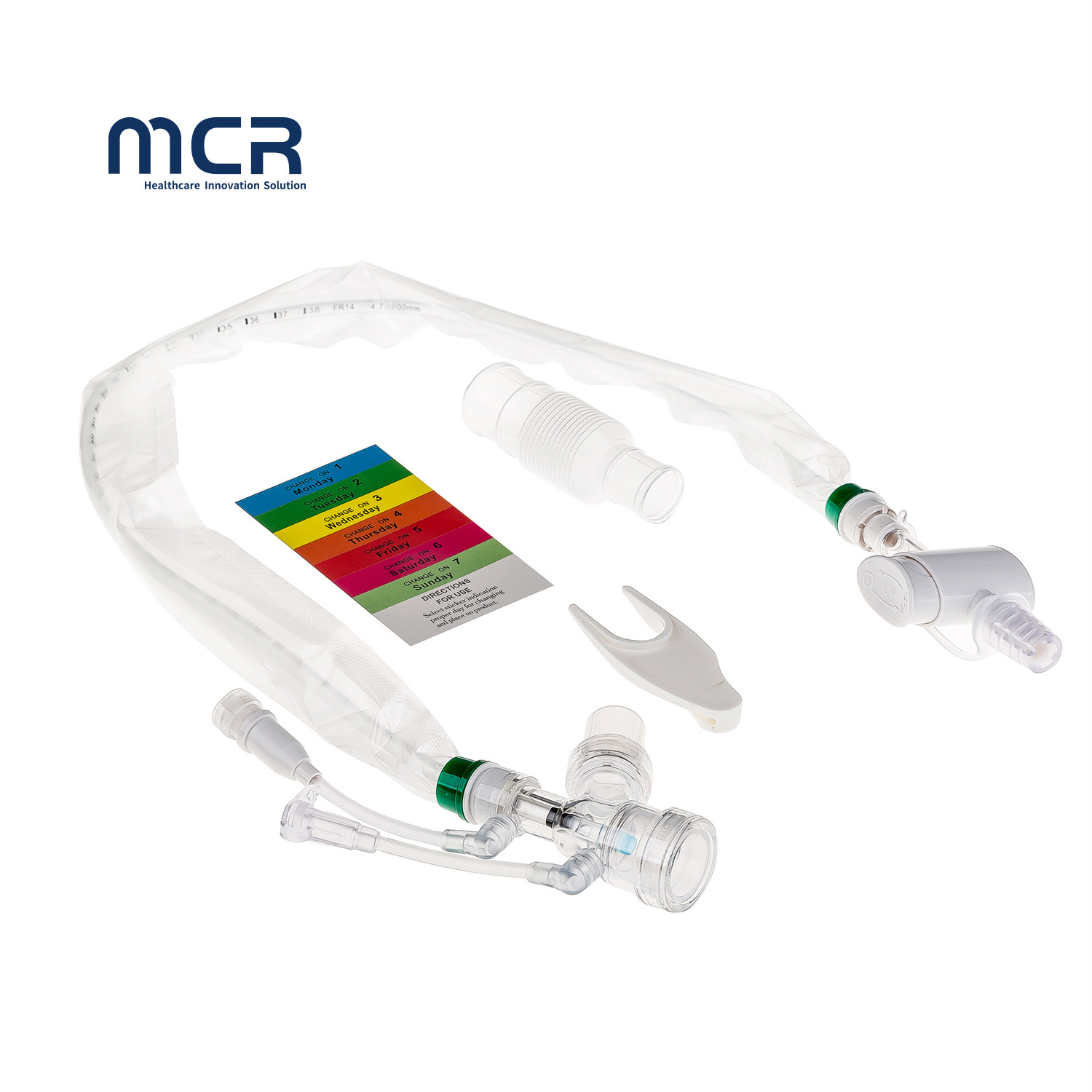

Sterile Closed Suction Catheter With Double Swivel Adapter Images |
